Application:
Industry：Wastewater treatment, Vegetables and fruits cleaning，Food processing
Agriculture：Boosting plant health, Cultivate seeds
Aquaculture：Reduce the spread of fish diseases
Domestic：Swimming pool
|
|
The test data and source are household ordinary tap water; The ORP value will increase by 100-150 from the original value The pH value will increase by 0.5~1 from the original value The test water sample contained Escherichia coli, and the mortality rate reached 99% after two minutes. After 10 minutes, the ORP and pH values of the water returned to their initial values. Tip: The ORP value of a solution near a certain numerical point represents a reduction or oxidation state of the solution, or indicates a certain property of the solution (such as hygiene level, etc.), but this value can vary greatly and cannot be quantitatively determined. This is a different concept from accuracy in pH testing. In addition, the temperature coefficient that affects the ORP value is also a variable that cannot be corrected. So different water qualities need to be tested according to actual conditions. |
|
Degradation experiment of agricultural residues in fruits and vegetables |
Elimination rate% |
|
Chlorpyrifos (C9H11Cl3NO3PS) |
> 98 |
|
Cypermethrin (C22H19Cl2NO3) |
> 98 |
|
Water sterilization effect test(10 min) |
Elimination rate% |
|
E. coli |
> 98 |
|
S.aureus |
> 98 |
|
Salmonella |
> 98 |
|
P. aeruginosa |
> 98 |
|
legionella |
> 98 |

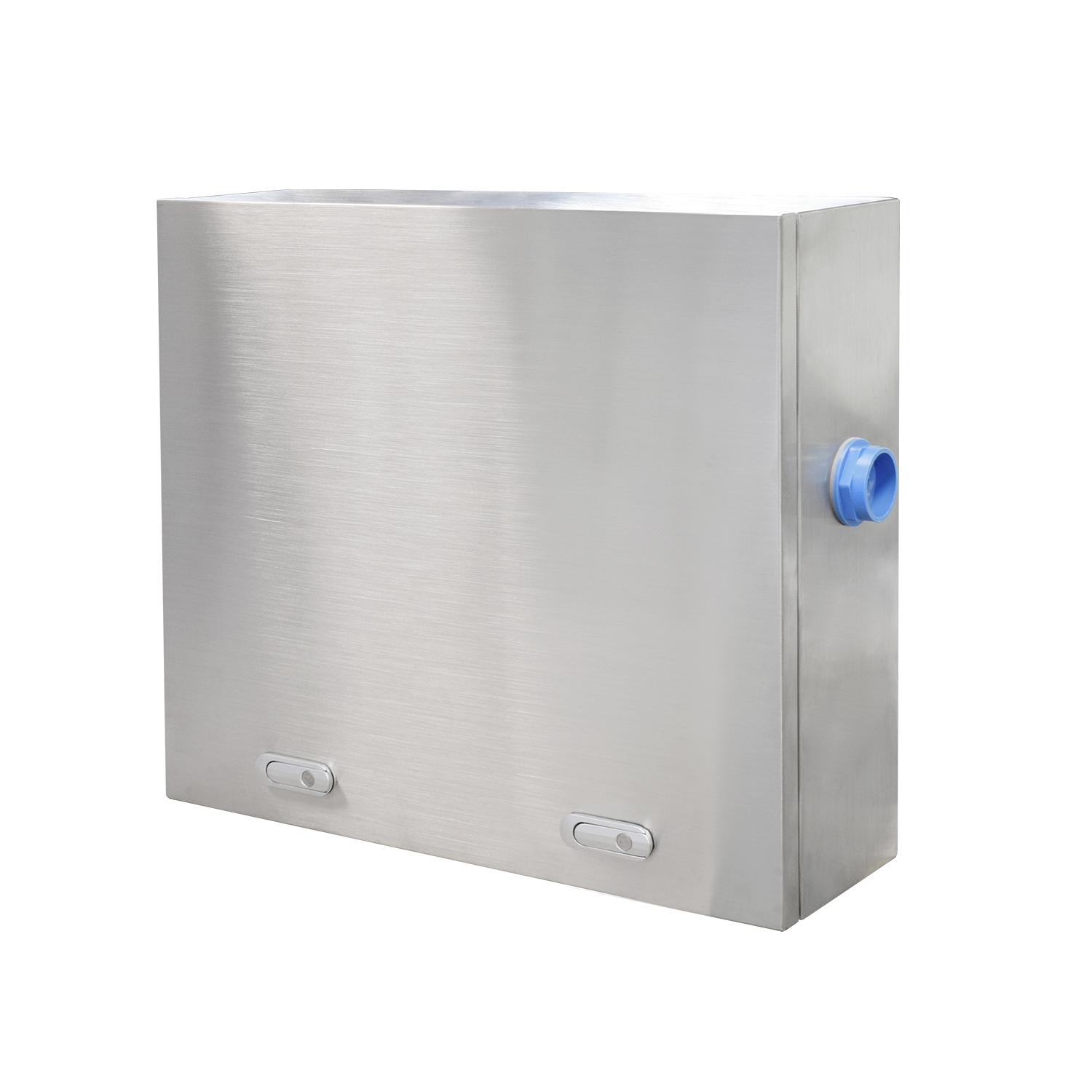

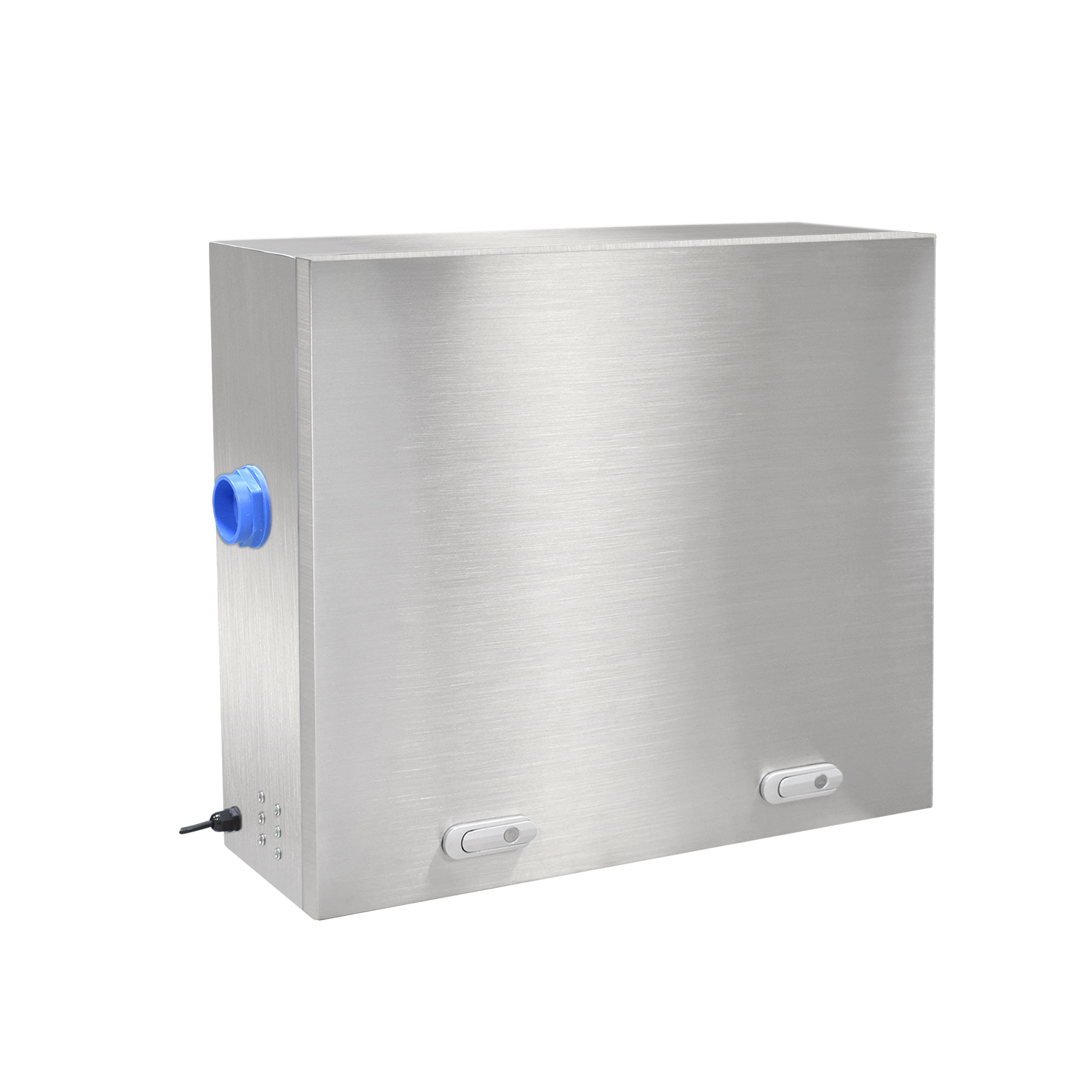

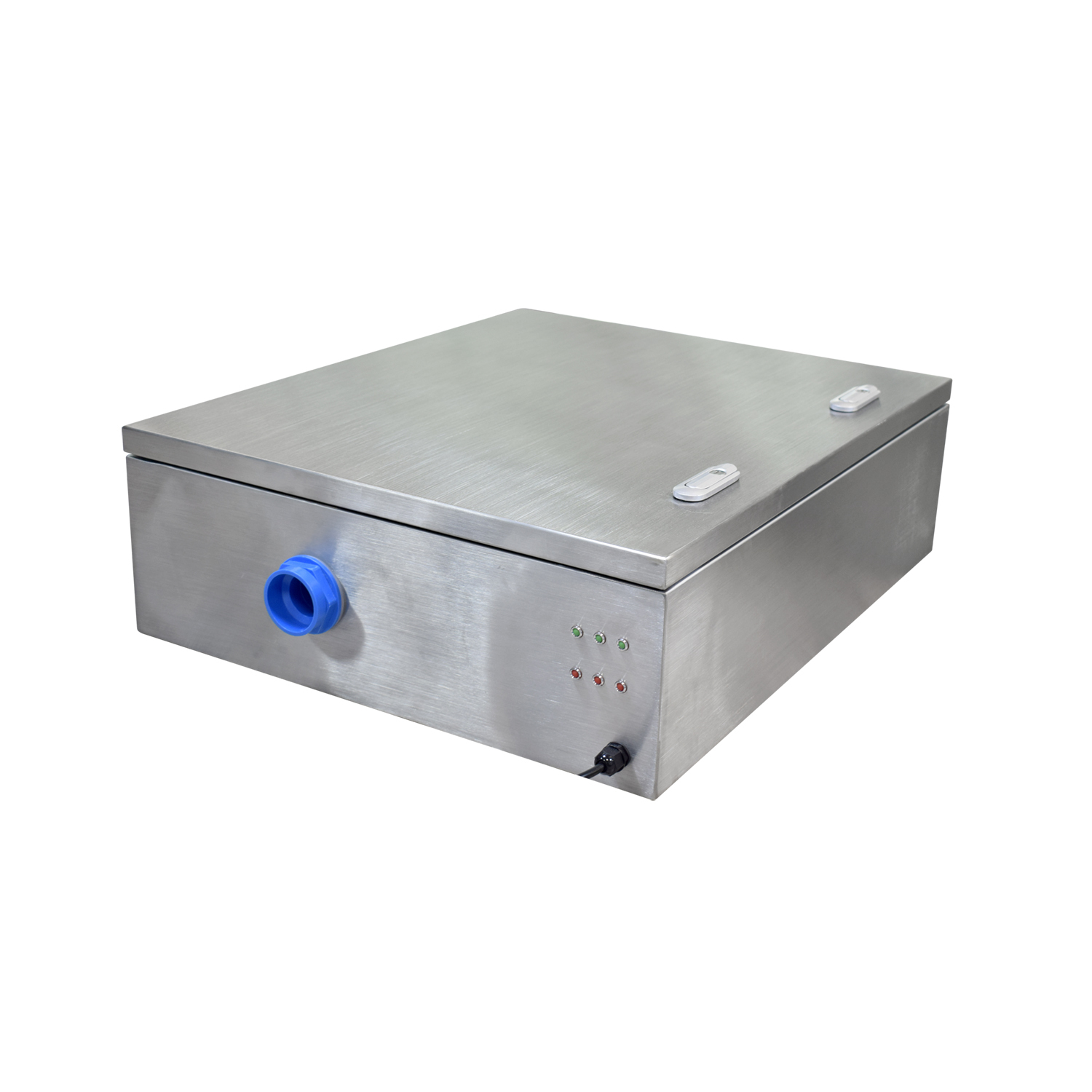

| Model： | PS-518TF |
| Mode of Operation: | DBD Technology |
| Material: | SUS304 |
| Ionic Concentration: | 13*10⁵(cm³/s) |
| Processing rate: | 1800L/h（The sterilization rate reaches over 90%） |
| Noize: | ≤60dB |
| Weight: | 30KG |
| Voltage: | AC130V or AC 240V |
| Frequency： | 50/60Hz |
| Power Consumption: | 40W |
| Dimension: | 650*550*200 mm |

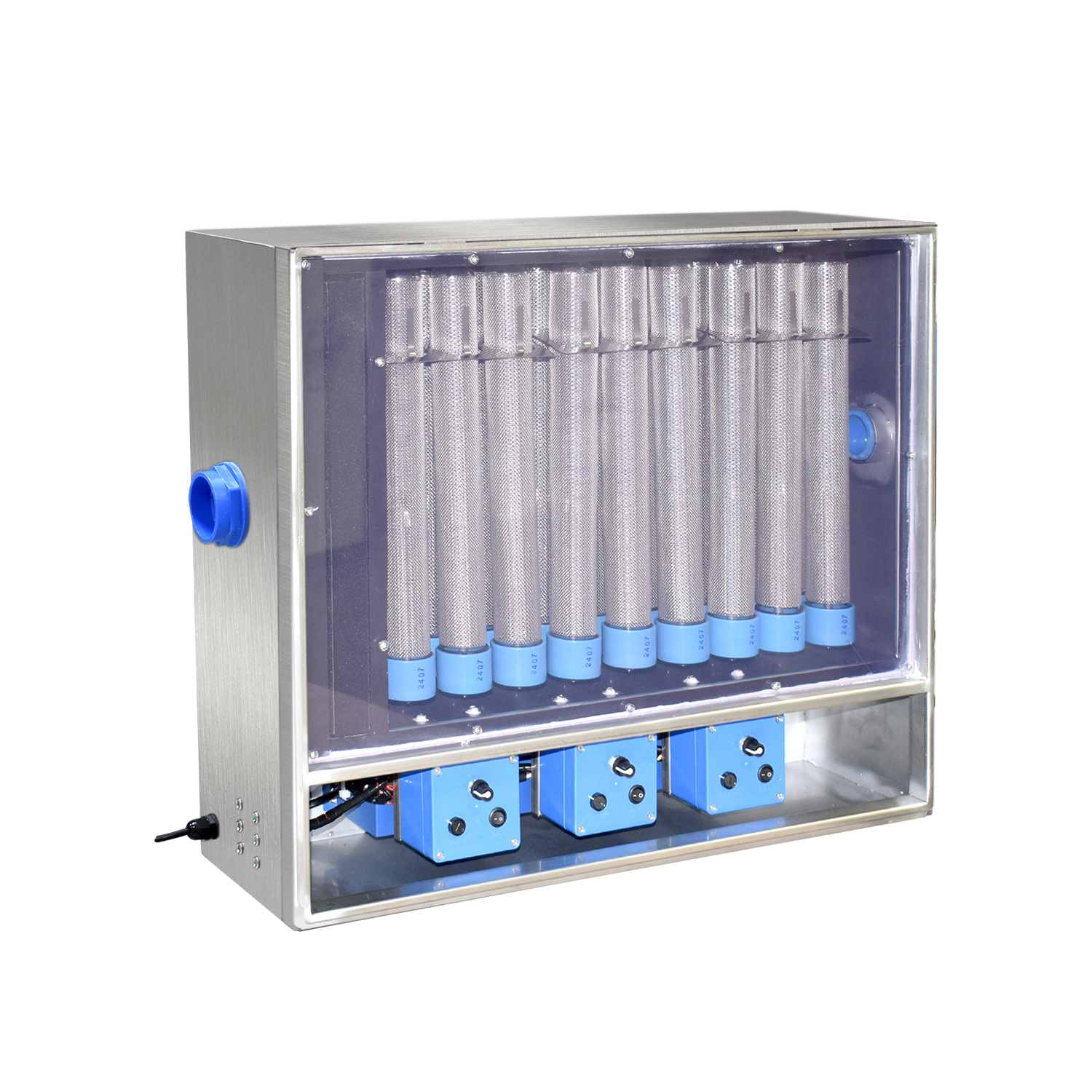

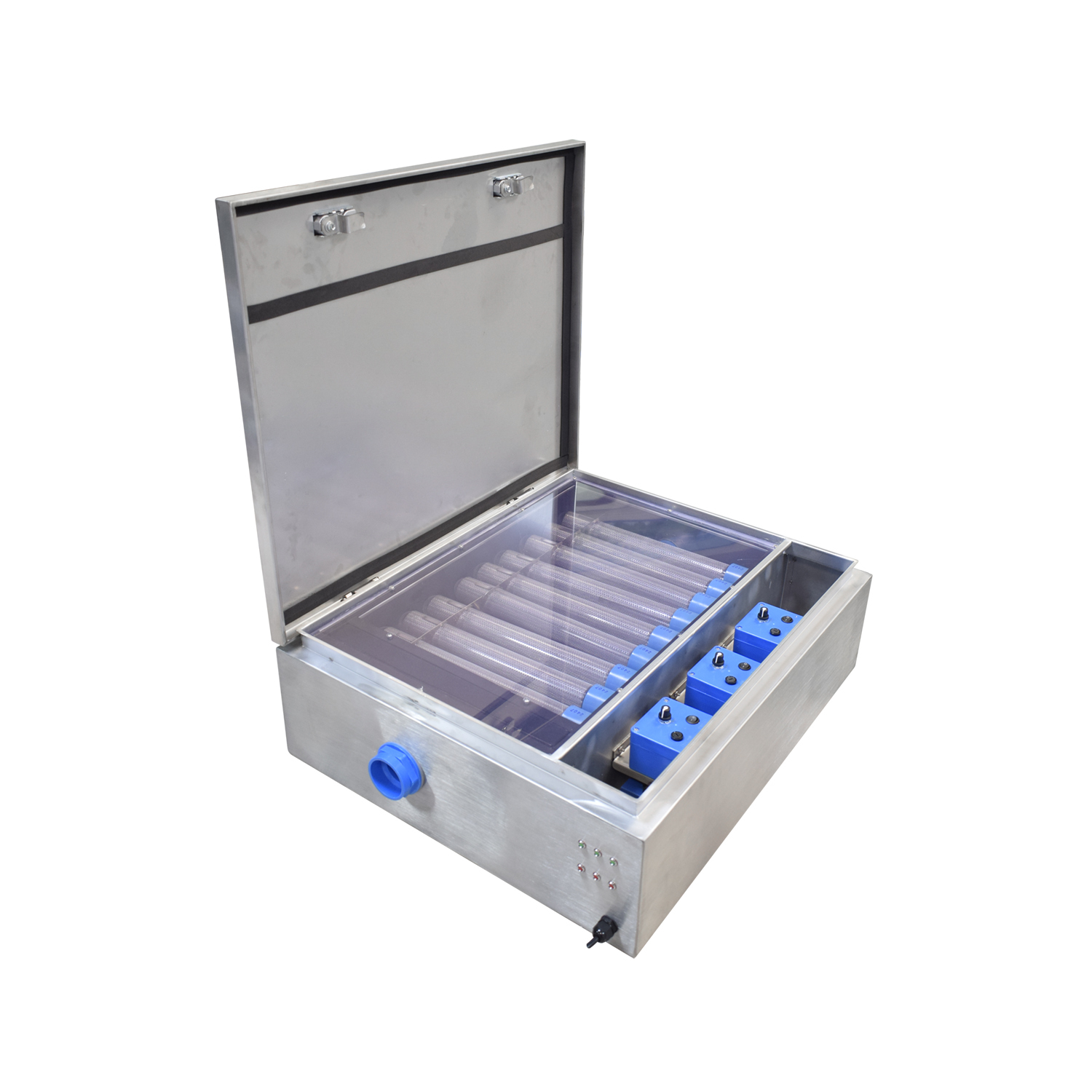

| Ion Tube Quantity: | 18 PCS |
| Filter: | Primary |
| Ion Tube Length： | 350mm (14 inch) |
| Estimated Ion Tube Life： | 17000hours |
| Warranty： | 2 years |
| Optional Accessories： | 1.Timer 2. Remote control 3. WIFI control 4. Touching display 5. Modbus system(RS485) |
